BULLET POINT
- Charge 1S Lipo batteries (4.2V) and HV Lipo batteries (4.35V) at once in the same board by a selectable switch.
- XT60 Input (3s or 4s) for field charging. Could charge up to 6 pcs batteries with Picoblade 1.25 or JST PH2.0 power plug at once. Individual charging per ports, not parallel.
- Turns itself off when supply battery reaches safe low-voltage. 2 channels BEC for supply current. 400mAh current per charge port
- LED lights indicate when each battery is done charging
SPECIFICATION
- Weight: 36g
- Dimensions: 75x42x17mm
- Input: 3s - 4s Selectable
- Cutoff Voltage: 10.8v (3s), 14.4v (4s)
- Output: Fixed at approx 400 milliamps
- 4.20v cell charging cutoff for Lipo battery (+- 0.5% margin of error)
- 4.35v cell charging cutoff for HV Lipo battery (+- 0.5% margin of error)
- Optional AC Wall Adapter
Note: Ports are numbered 1-6. Do not put more than one battery on a single port. For example: do not insert one battery on the Picoblade 1.25 plug and another on the same port with the PH 2.0 plug.
PACKAGE

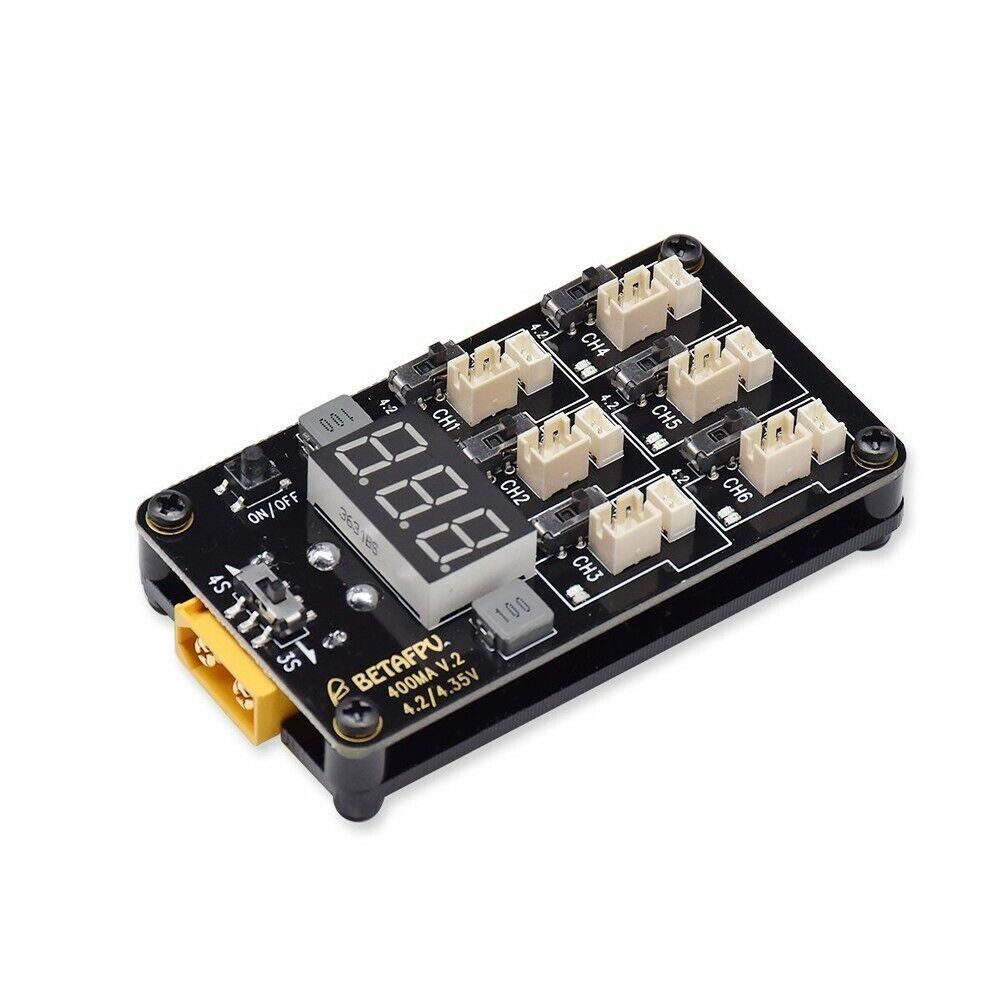

- 1 * BETAFPV 1S Lipo LiHV Charger Board
