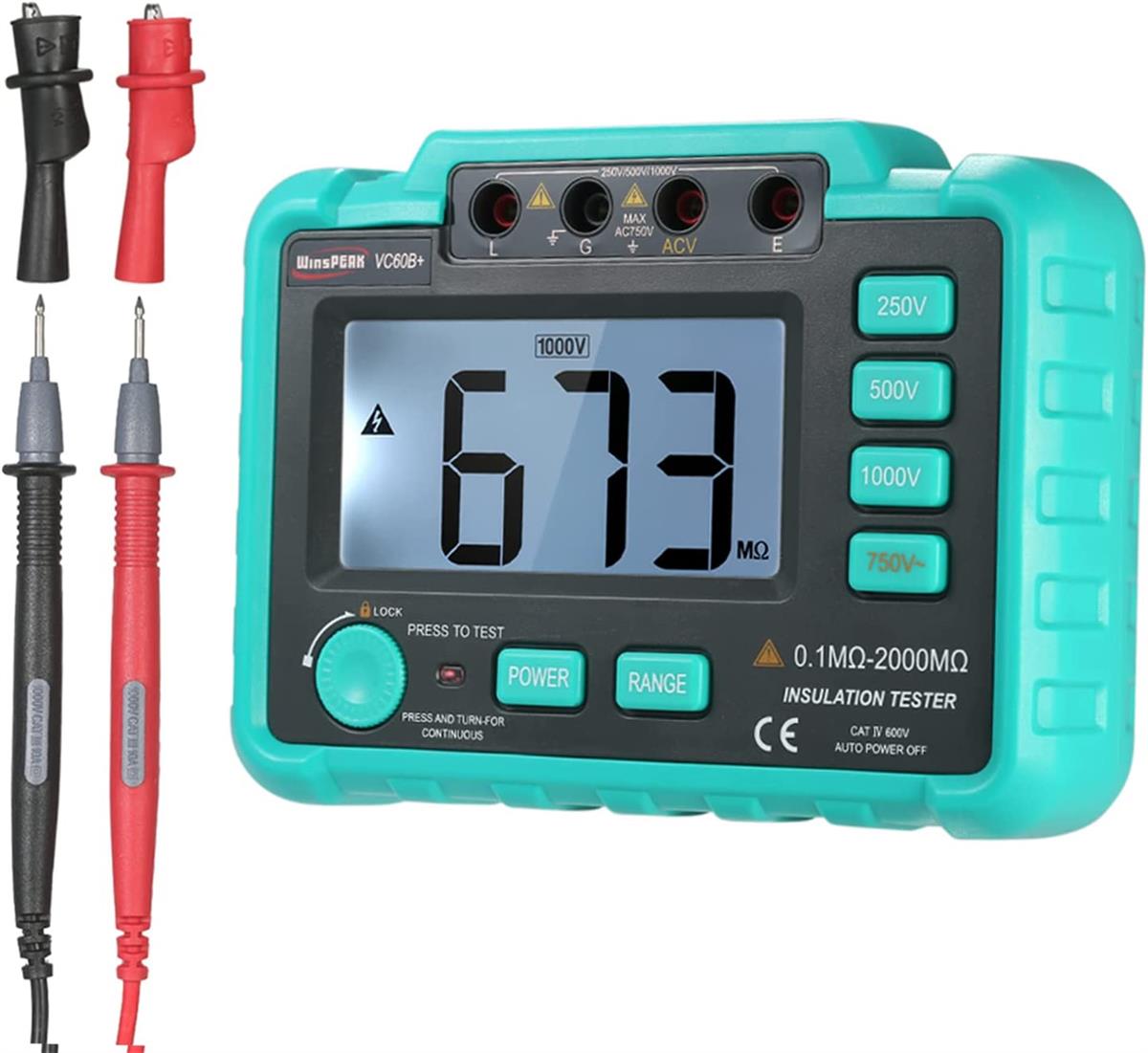

WinsPEAK VC60B+ LCD Digital Insulation Resistance Tester Megohm Meter Megohmmeter DC250V/500V/1000V AC750V

This instrument adopts low-loss high-ratio of inductance energy storage DC voltage converter to change 12V into DC 250V/500V/1000V. It uses digital LCR Bridge for resistance measurement and the insulation resistance test. It has many advantages: lightweight, wide measuring range, backlight display, test lock, auto power off and other functions. It can also be used for electricity measurement with advanced appearance and stable performance.

Specifications:
Color: Dark Grey + Green
Material: ABS
Output Voltage: DC250V/500V/1000V, ±10%
Insulation Range: 250V: 0.1MΩ~20 MΩ/20MΩ~500 MΩ; 500V: 0.1MΩ~50 MΩ/50MΩ~1000 MΩ; 1000V: 0.1MΩ~100 MΩ/100MΩ~2000 MΩ
Accuracy: ±(4% reading + 2 digits)
Short-circuit Current: < />
Median Resistance: 250V/500V: 2MΩ; 1000V: 5MΩ
Terminal Position: L & E
Voltage Test: AC750V; Accuracy: ±(1% reading + 6 digits)
Input Impedance: 1MΩ
Frequency Response: (50~200) Hz
Terminal Position: ACV & G
Display: 90 * 48mm LCD with Backlight
Max. Display: "1999"
Over Range Display: "1"
Measurement Method: A / D Conversion
Sampling Rate: 3 times/second
Operating Temperature: 0~40°C
Operating Humidity: 30%~85%RH
Power Supply: 8 * 1.5V LR6 Batteries(NOT Included); or DC 12V Power Adapter(NOT Included)
Product Size: 170 * 120 * 60mm / 6.7 * 4.7 * 2.36in
Product Weight: 528g / 18.65oz
Package Size: 20 * 16.5 * 7cm / 7.87 * 6.5 * 2.76in
Package Weight: 730g / 25.77oz
