Product Description
- Simple & Efficient Impulse Response Loading tool for simulating all kinds of Speaker Cabinets
- 11 on-board Classic Guitar/Bass Cabinet Simulations with Volume Control
- Super easy way (Drag and Drop operation) for Managing IR Files (recognized as a USB Disk)
- XLR Balanced Output for plugging into Mixer or Audio Interface or PA System
- Guitar Bass Effects Pedal working with 9V Center Negative Regular Pedal Power Supply(not included)
Sonic IR guitar bass effects pedal is a simple and efficient cabinet simulator. You can load your own IR files. Two outputs jacks are suitable for different usage scenarios.
Specifications
Power: DC 9v center negative (not included)
Current consumption: 200mA
Dimensions: 93.5(D)×42(W)×52(H)mm
Weight: 270g
IR Processing: 24bit, 44.1kHz,1024 points
Signal to noise ratio: 100dB
Frequency Range: 20Hz~20kHz

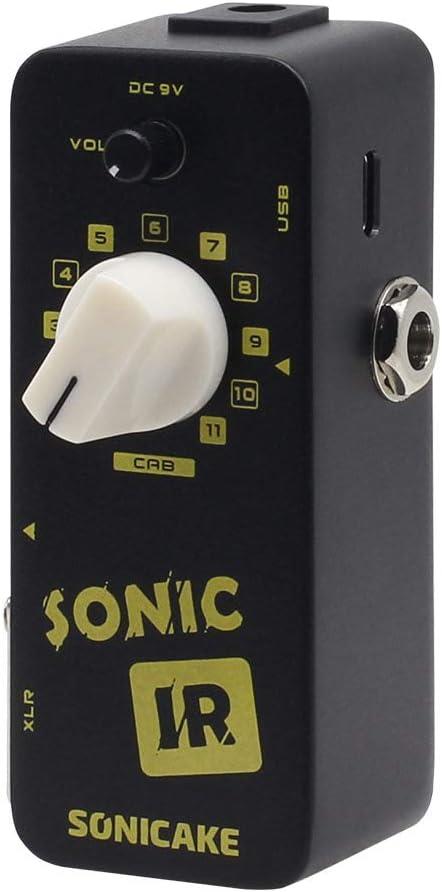

Overview
1. DC 9V: Plug in your power jack
2. VOL: Controls the output level
3. USB: For connecting to a computer to manage IR files
4. CAB Selector: Selects from 11 IR cabinets
5. IN: Plug in your instrument
6. UNBALANCE OUT: 6.35mm TS unbalance output
7. BALANCE OUT: XLR balance output
|
|
|
|---|
IR LoaderSonic IR effects pedal delivers 11 carefully selected classic guitar/bass cabinet models at the factory. Basically covers various cabinet types. You also can load your own IR files. Sonic IR supports 24-bit, 44.4kHz mono WAV files. | Two Output ModesSonic IR guitar bass effects pedal has two output modes: 6.35mm unbalance output and XLR balance output. 6.35mm output enabling it to be part of your effect chain. XLR output for plugging into a Mixer, Audio Interface or PA system. | Perfect DesignSonic IR guitar bass effects pedal also comes with a zinc-alloy die cast casing to withstand wear and tear. Road-ready. |
