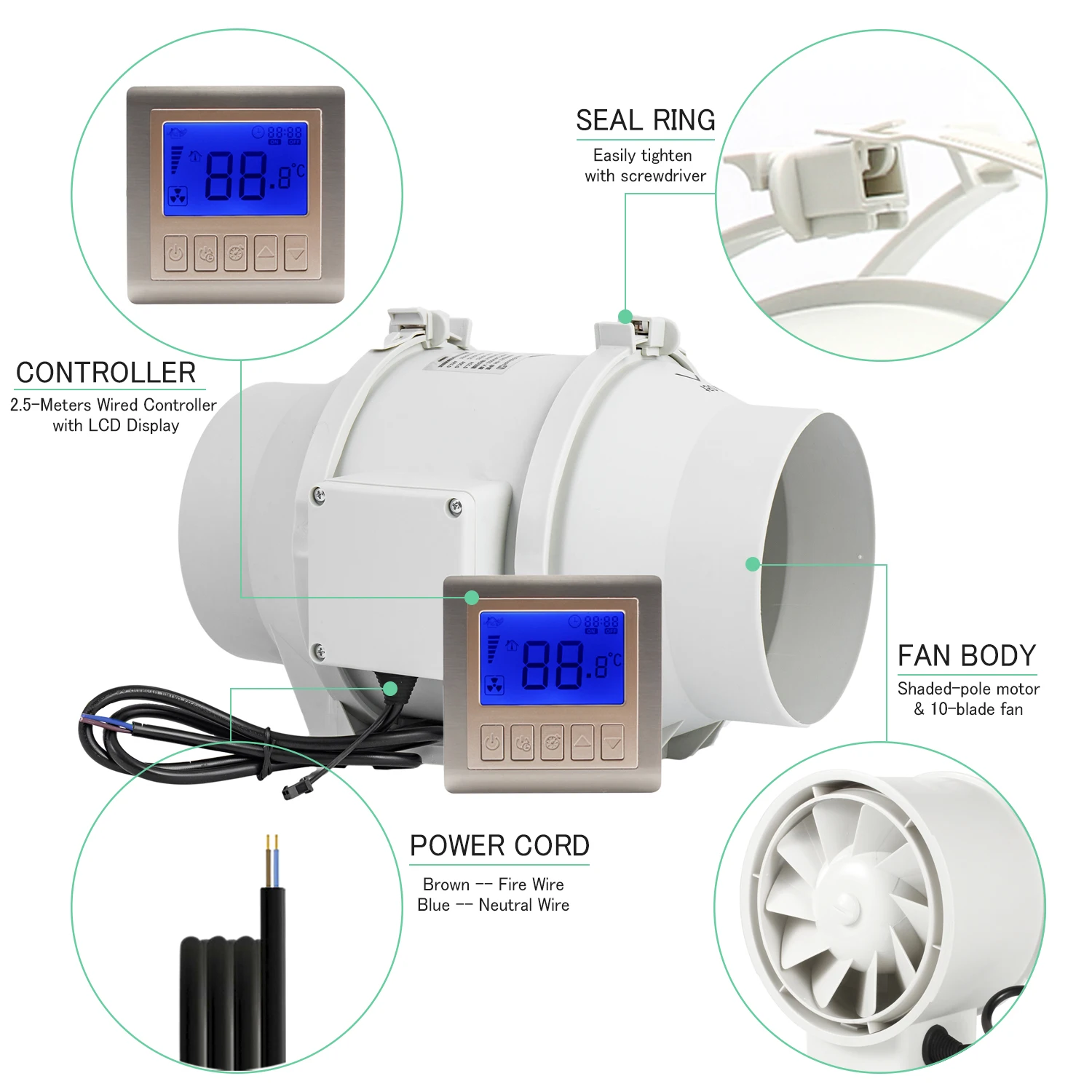

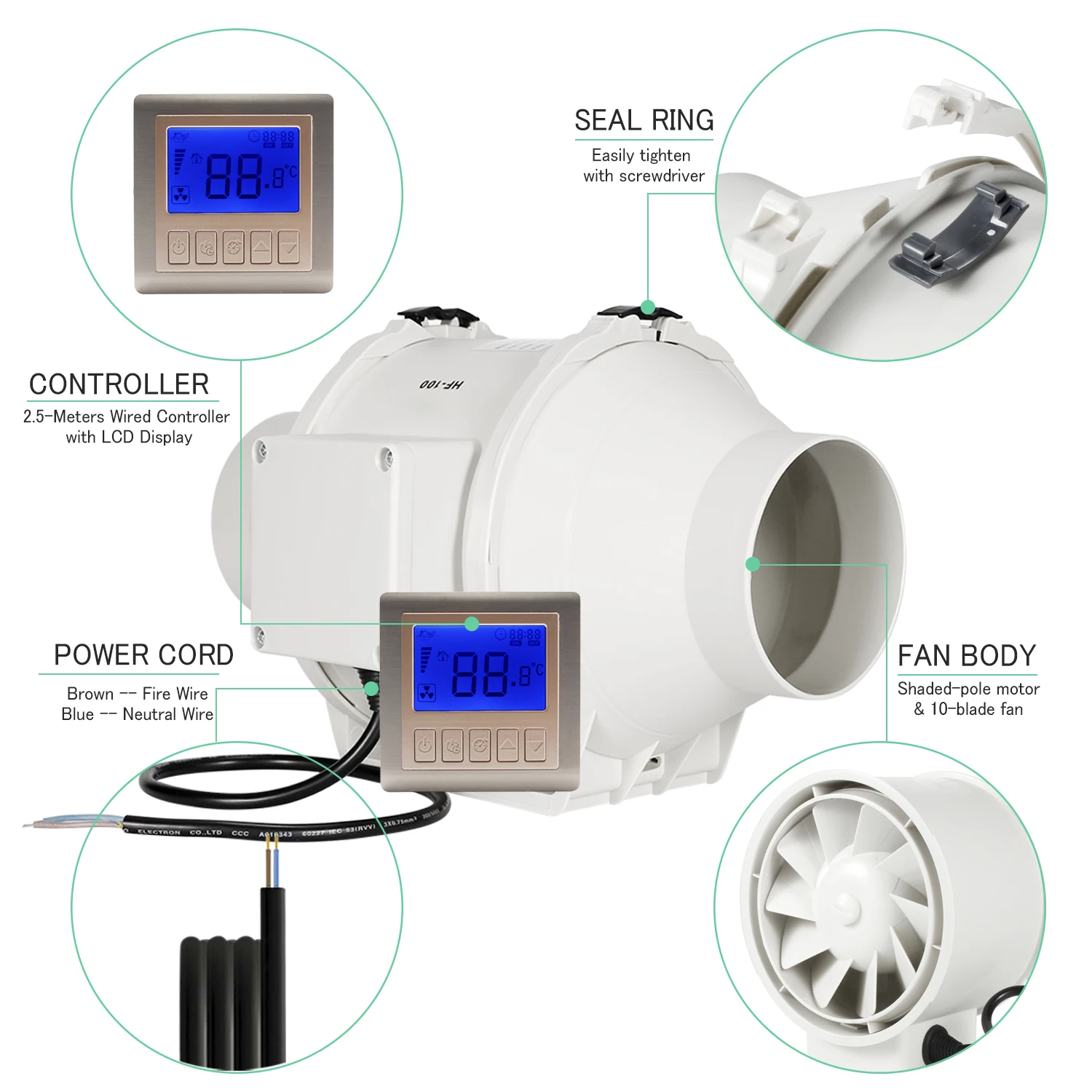

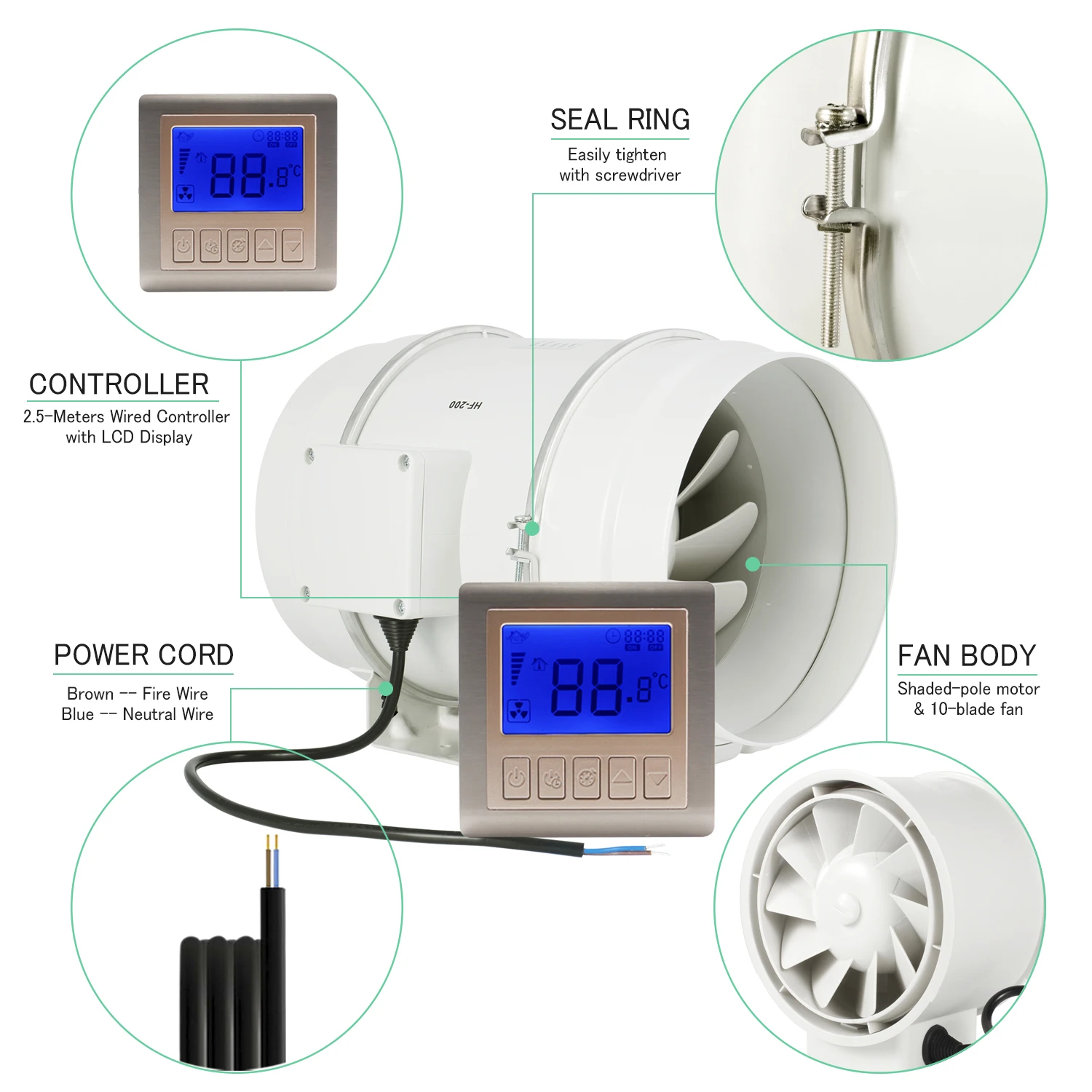

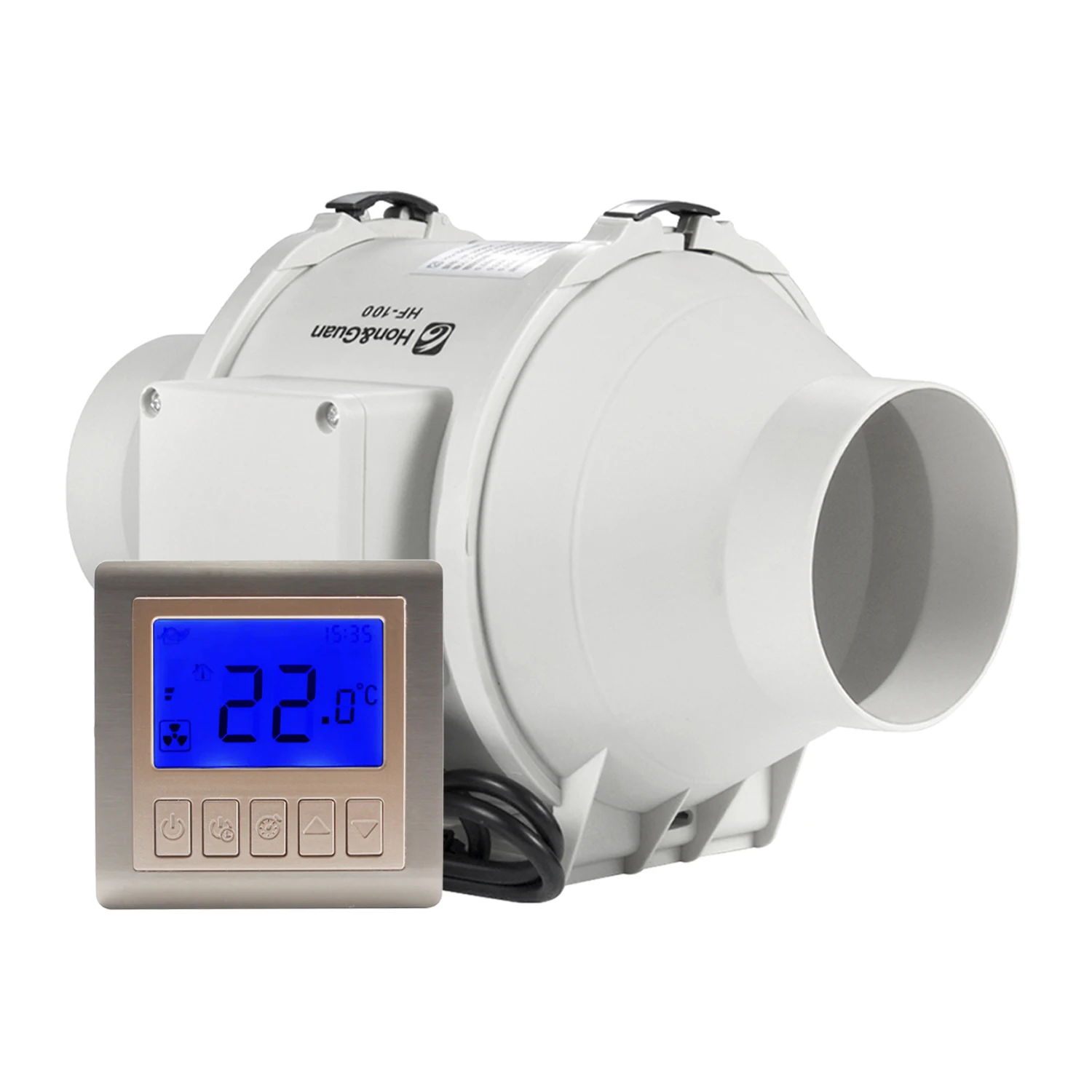

-- Easy to Install-- Plastic fan is lighter than steel. Removable duct ends with locking tabs for quick removal and easy maintenance.
-- UV and corrosion resistant-- Durable plastic housing Ideal for long duct runs.

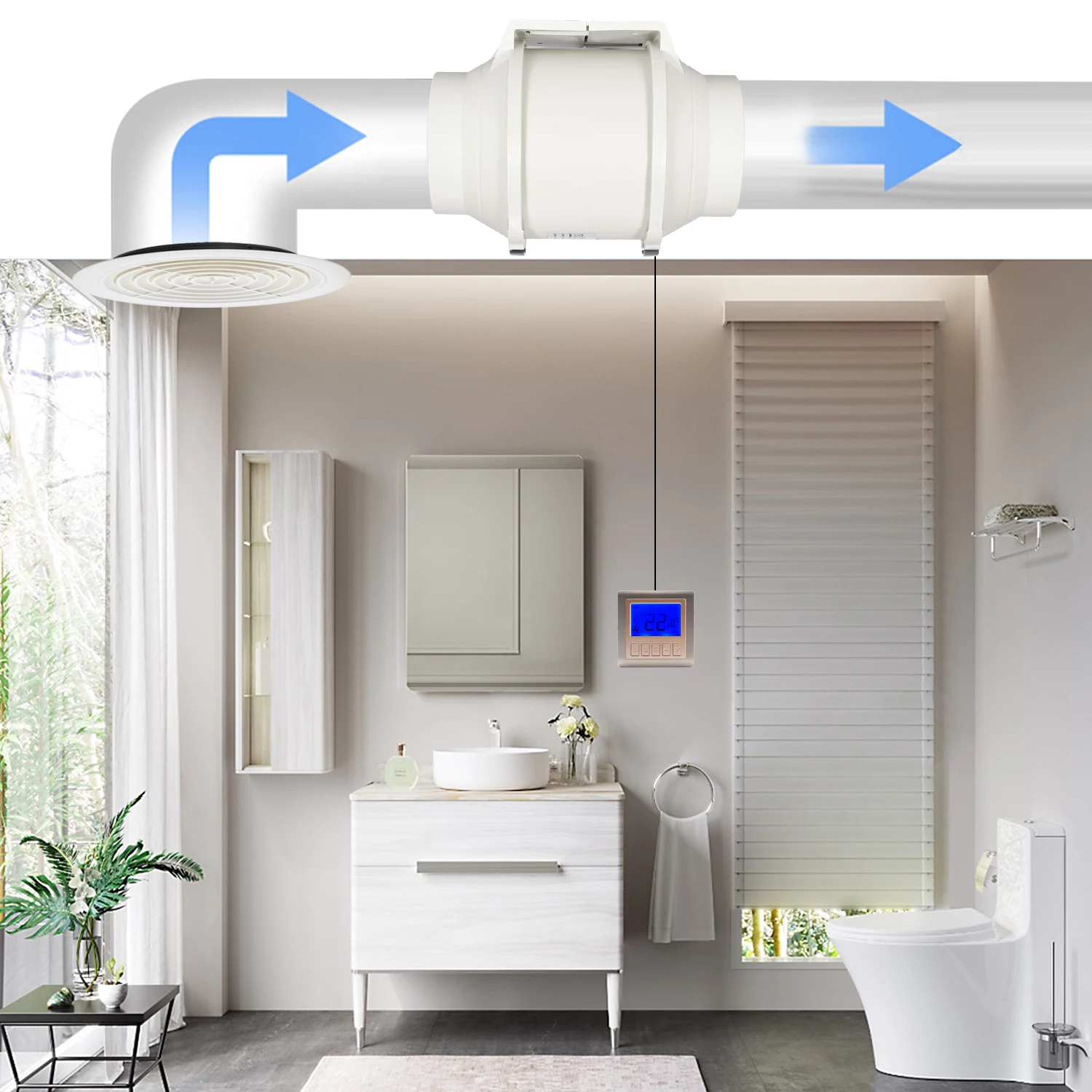

-- Application Scenarios-- Designed to quietly ventilate grow tents, transfer heating/cooling to rooms, circulate fresh air, cool AV closets, exhaust odors.
-- Powerful and Silent-- Durable plastic fan housing and blades for extremely low noise. Quickly and efficiently move vast amount of air.
-- Long life-- Long life ball bearing motor with thermal overload protection. For Air Purification-Removing a large amount of air pollutantion and bacteria.

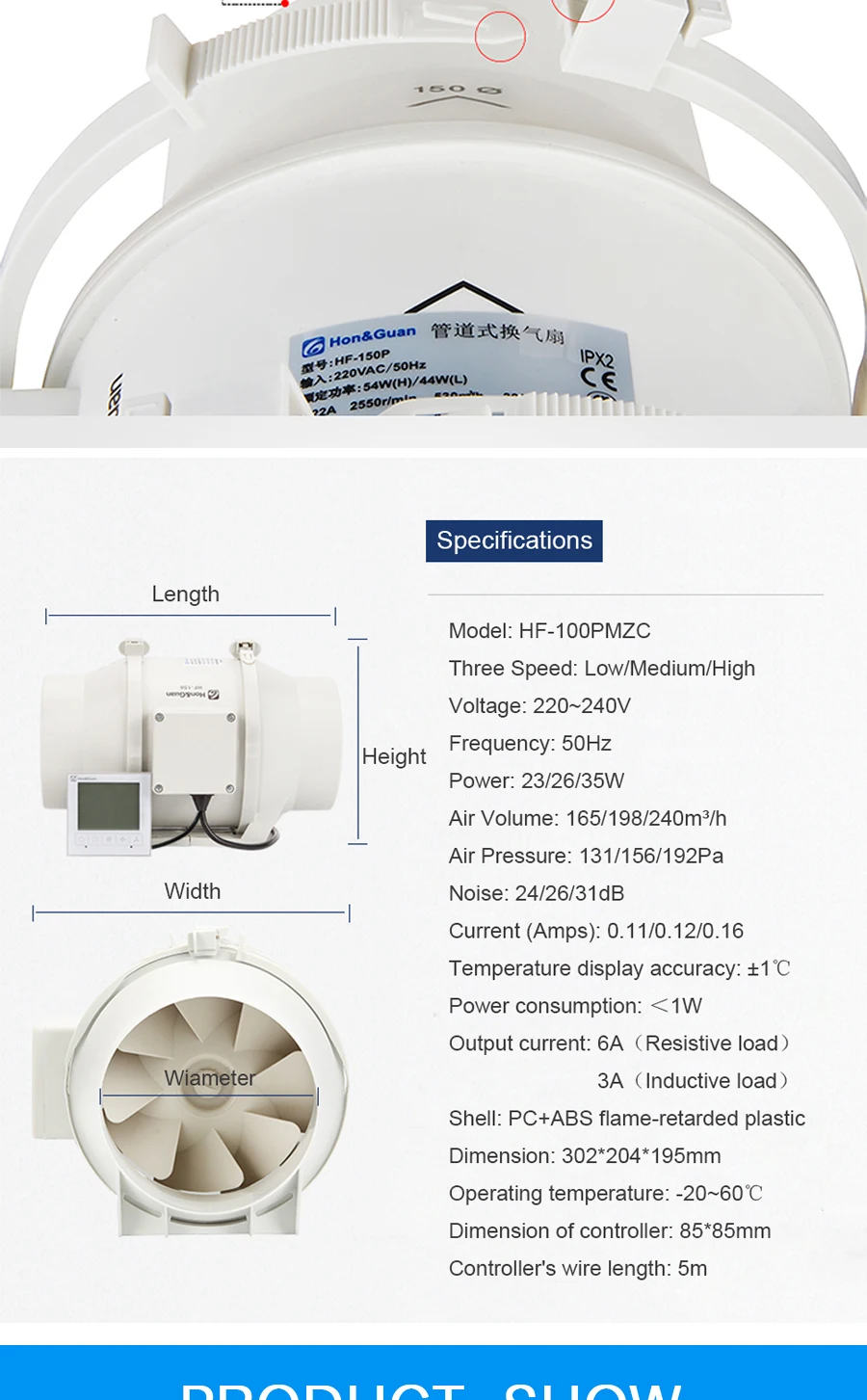

Specifications:
Three Speed: Low/Medium/High
Voltage: 220~240V
Frequency: 50Hz
Power: 23/26/35W 123/125/128W
Air Volume: 165/198/240m³/h 690/765/840m³/h
Air Pressure: 131/156/192Pa 1950/2200/2450RPM
Noise: 24/26/31dB 55/59/63dB
Current (Amps): 0.11/0.12/0.16
Temperature display accuracy:±1℃
Power consumption:＜1W
Output current:6A（Resistive load） 3A(Inductive load)
Shell:PC+ABS flame-retarded plastic
Dimension:302*204*195mm
Weight:2.46KG/2.37KG/3.24KG/4.9KG
Protection class:IPX2
Operating temperature:-20~60℃

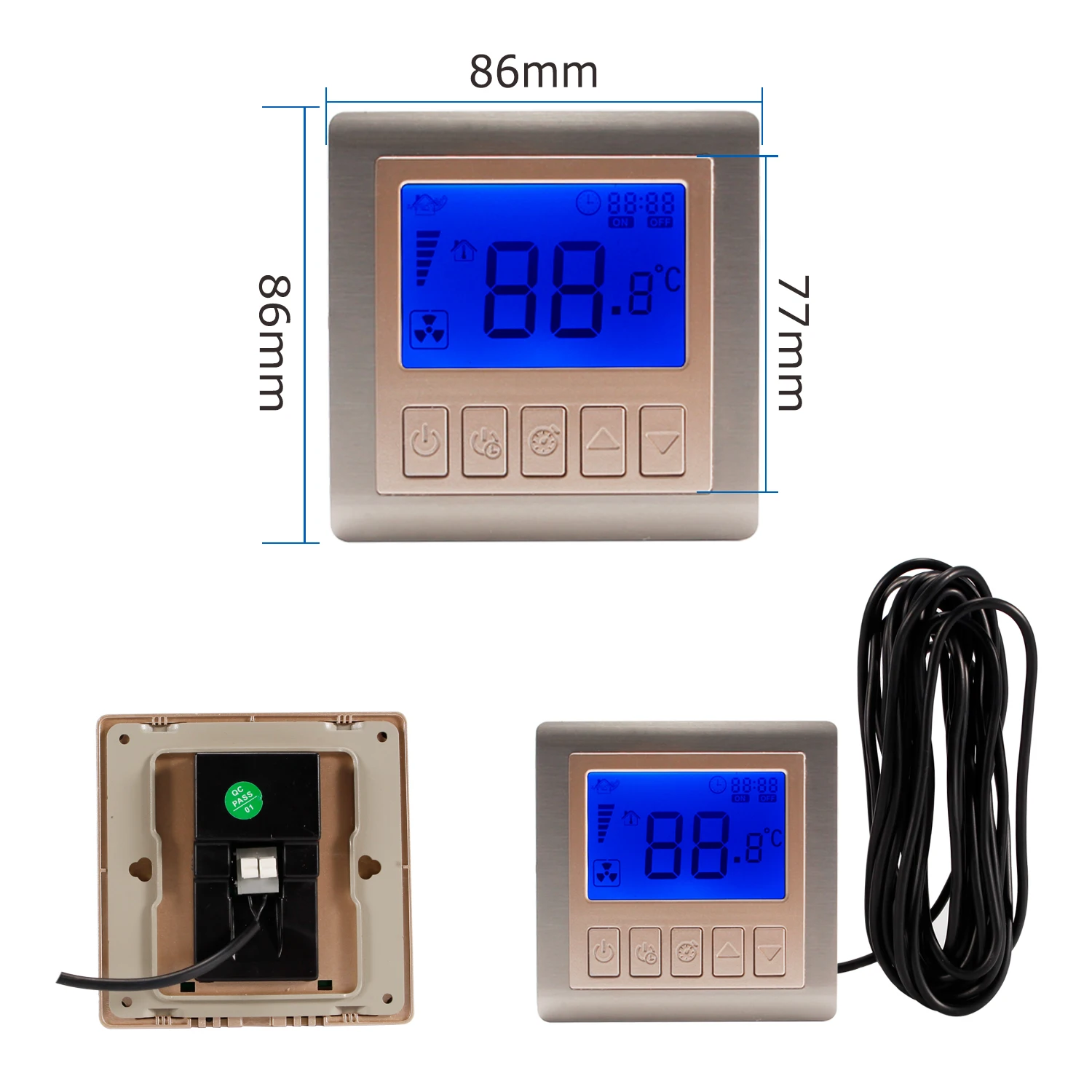

Dimension of controller:85*85mm
Controller's wire length:5m

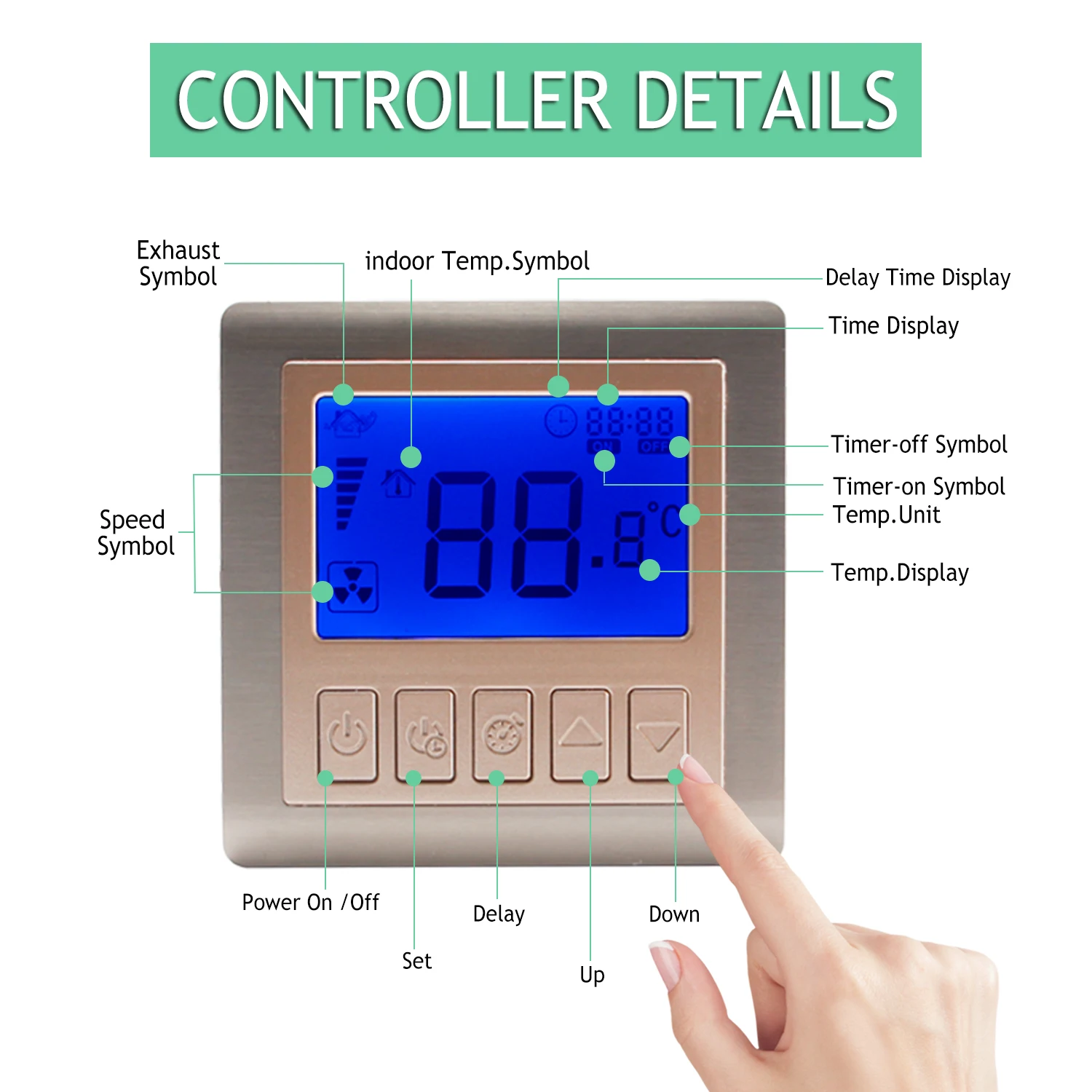

Basic Operation
1. Timer Set: Switch on the controller, short press the delay button once to delay 1min, and add 1 min every time you press the button, 30 minutes in total. Long press the delay button to cancel the timer function.
2, Air Speed Selection: Press the high / medium / low button to select the speed.
Controller Installation

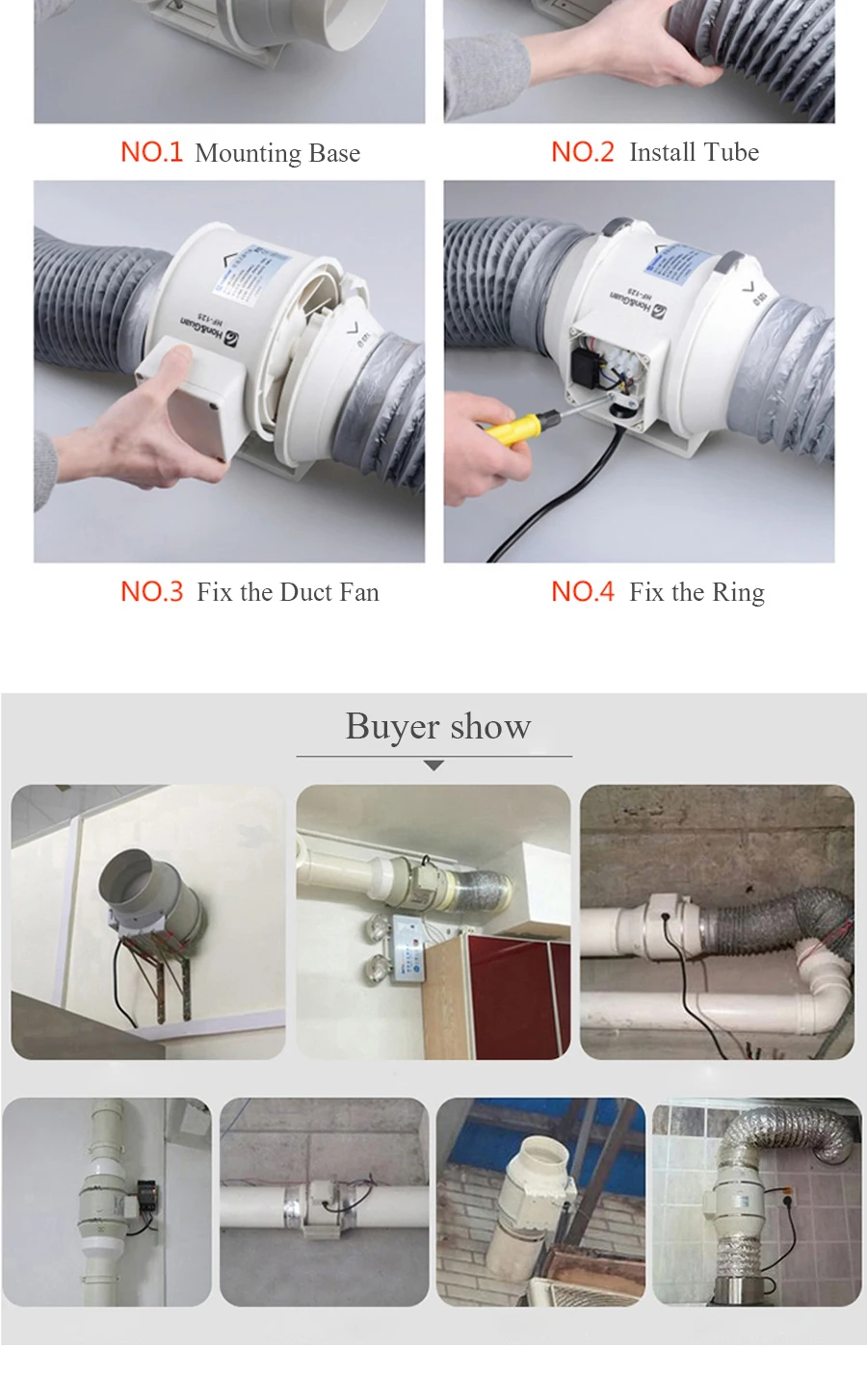

Pre-install 86x86 wiring box in the wall (Screws are in package). Selects the control device (valve or fan) and wired with controller. Make sure the 220V power supply is turned off and wiring in right turn.
You can directly mount the controller in the wall, no any other cord needed
