DSD TECH HM-10 Bluetooth 4.0 BLE iBeacon UART Module with 4PIN Base Board for Arduino UNO R3 Mega 2560 Nano

DSD TECH HM-10 Bluetooth Module

Product Code: HB-3417

Brand: DSD TECH

Warranty: 7 days checking warranty

Availability: In Stock

Rs. 700

You save Rs. 299 (30% Off)

Product Description

This is a Bluetooth 4.0 module with 4pin base board that can support iphone4s or later.
But does not support the version is lower than the android 4.3 phone(it don't support classic bluetooth 2.0 spp features)

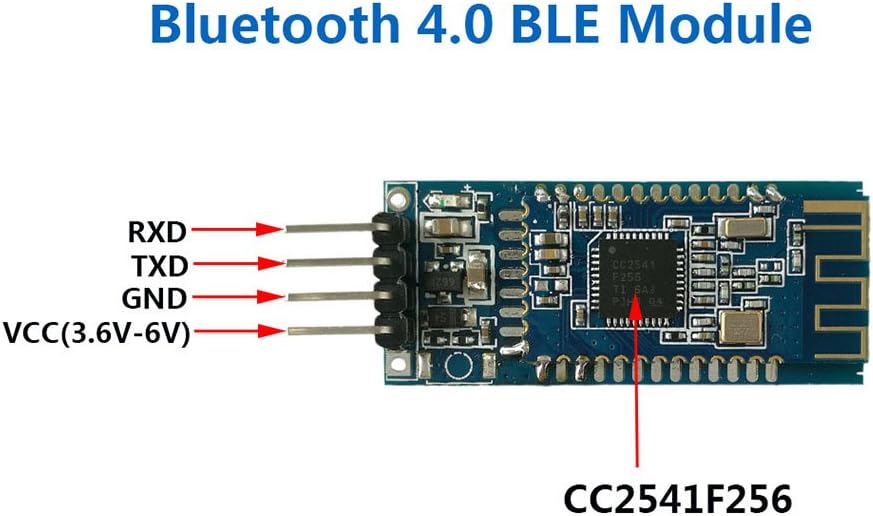

The core module is HM-10

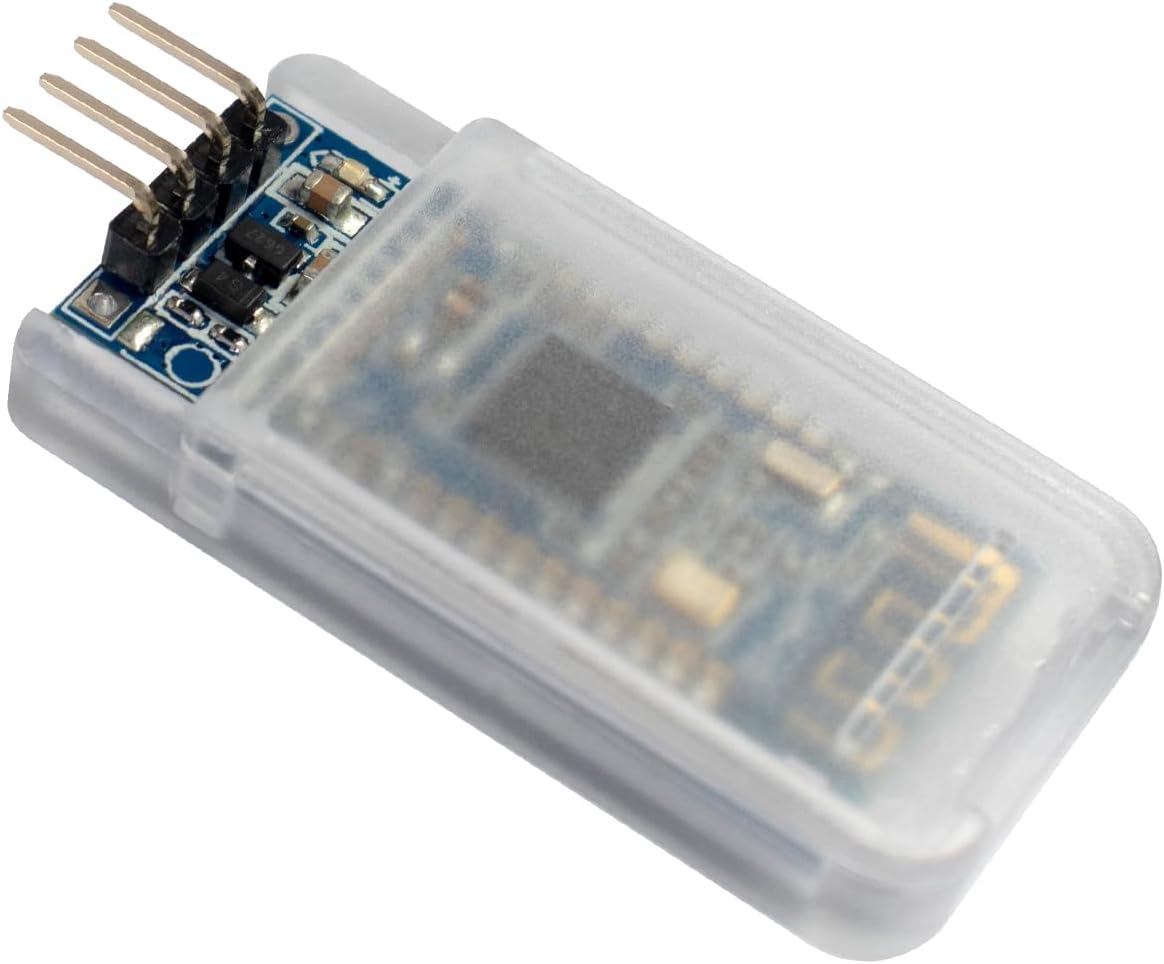

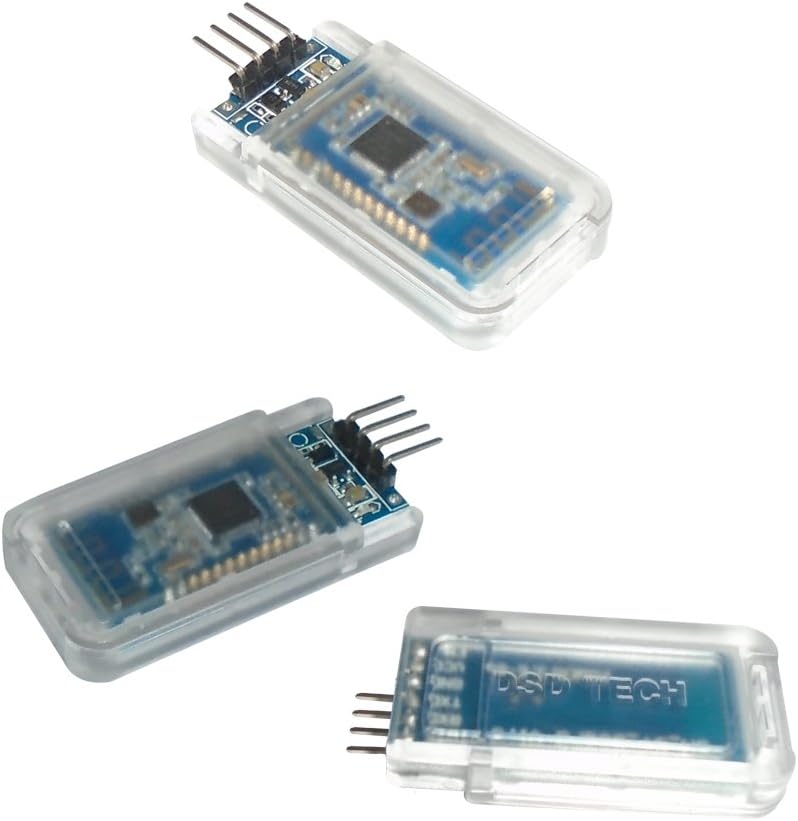

Base board from DSD TECH

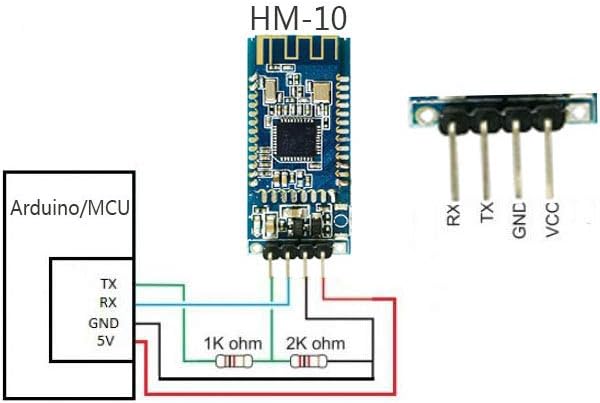

Operating voltage: 3.3V to 6V

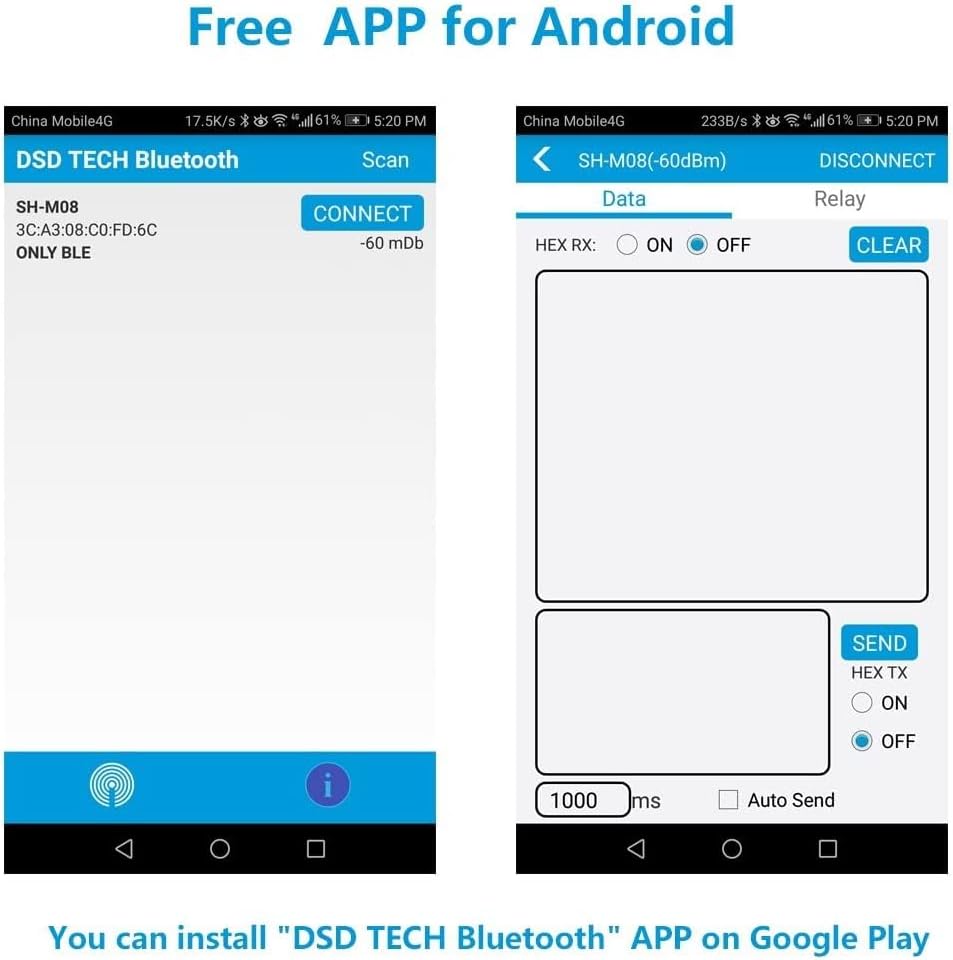

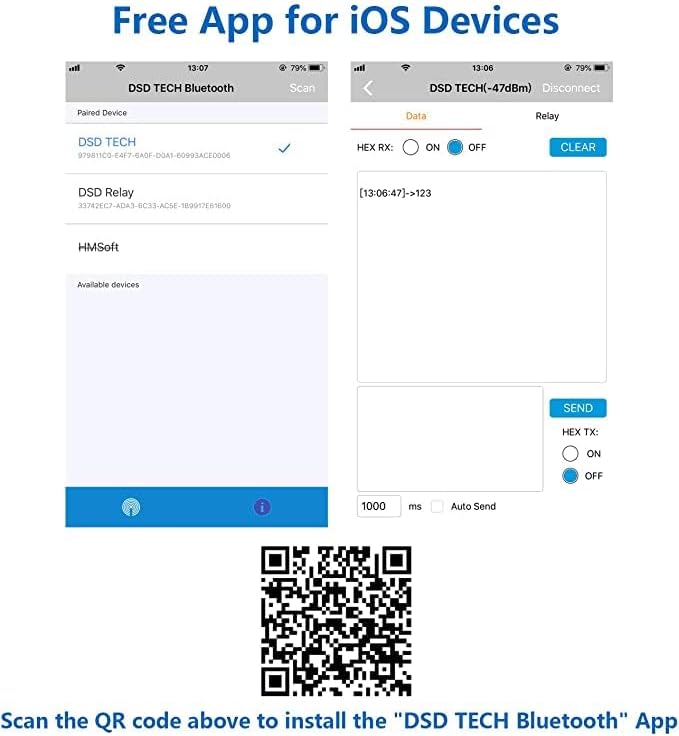

About APP
We provide a free app for this module for you to test and use.
Search for "DSD TECH Bluetooth", which you can find in appstore and google play.

How to Enable Apple Notification Center Service (ANCS) ANCS function
1.1 Please read apple notification ducument first
1.2 Send AT+TYPE3 command change to AUTH and BOND mode.
1.3 Send AT+ANCS1 command to open ANCS.
1.4 Send AT+PASS[para1] command to set passcode. Default passcode is "000000"
1.5 Send AT+RESET to restart module.
Now you can use LightBlue to scan and made a connect with module.
iOS will ask you input passcode. please input your passcode value.
If all is okay, you should receive AT+ANCS[para1] command from module UART.
