Technical Spec
Net Weight
1786 g
Radiator Dimensions
402×120×27 mm(L×W×H)
Radiator Material
Aluminum
Tube length
410 mm

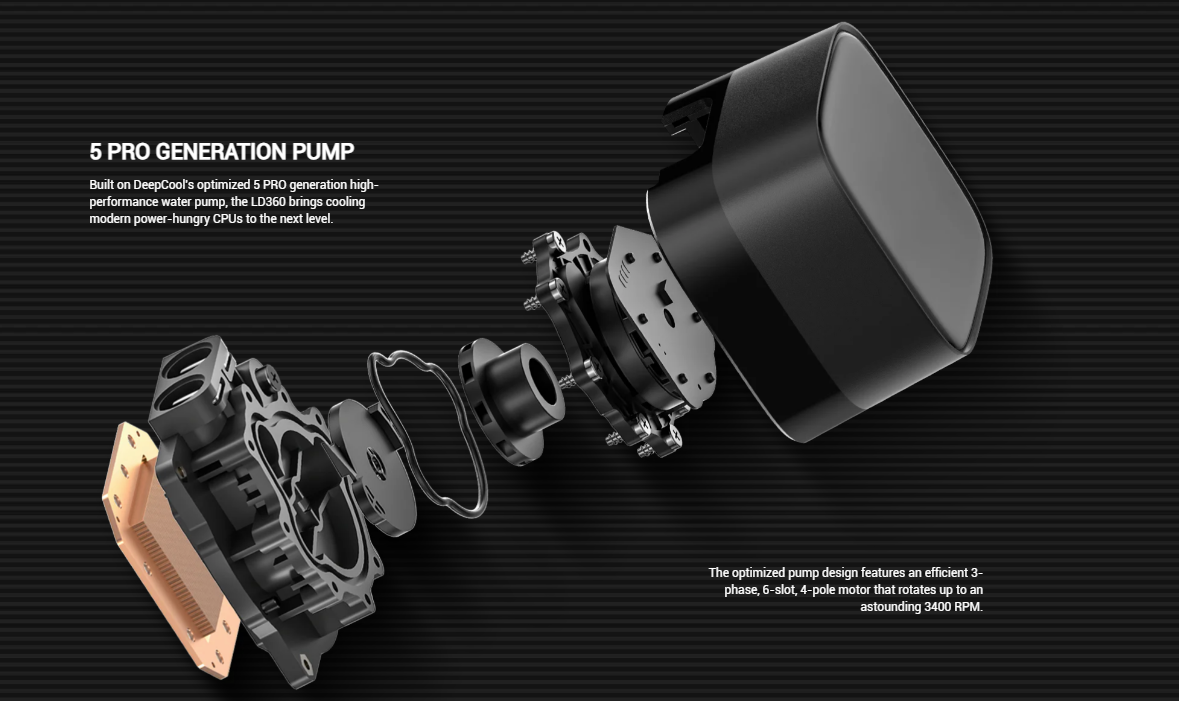

Pump Dimensions
89×78×53 mm(L×W×H)
Pump Speed
3400 RPM±10%
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.35 A
Pump Power Consumption
4.2 W

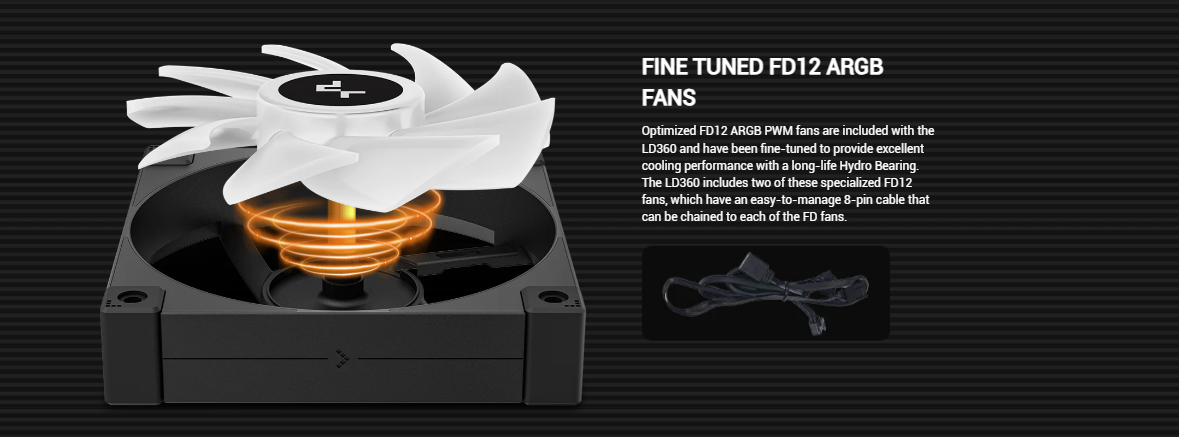

Fan Dimensions
120×120×25 mm(L×W×H)
Fan Speed
600~2400 RPM±10%
Fan Airflow
72.04 CFM
Fan Air Pressure
3.48 mmAq
Fan Noise
≤38.71 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
Fan Rated Current
0.22 A
Fan Power Consumption
2.64 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.55 W（PUMP）/ 3.15 W（FAN×3）

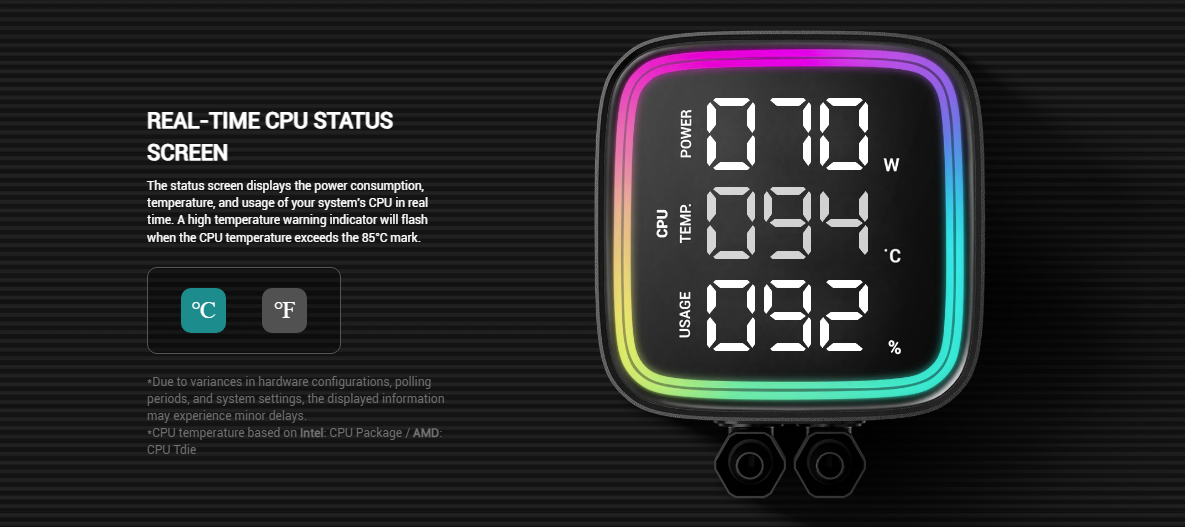

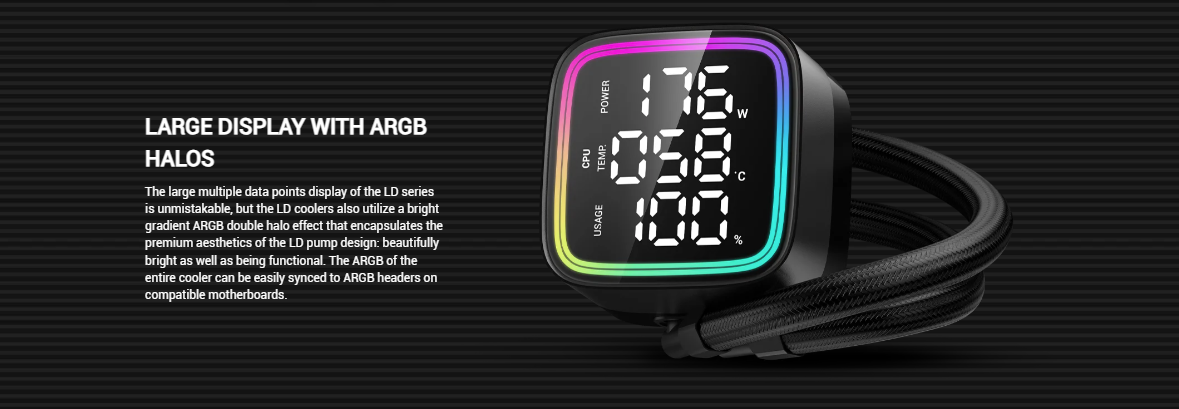

Display Type
LED Digital Display
EAN
6933412728726
P/N
R-LD360-BKMSN-G-1
