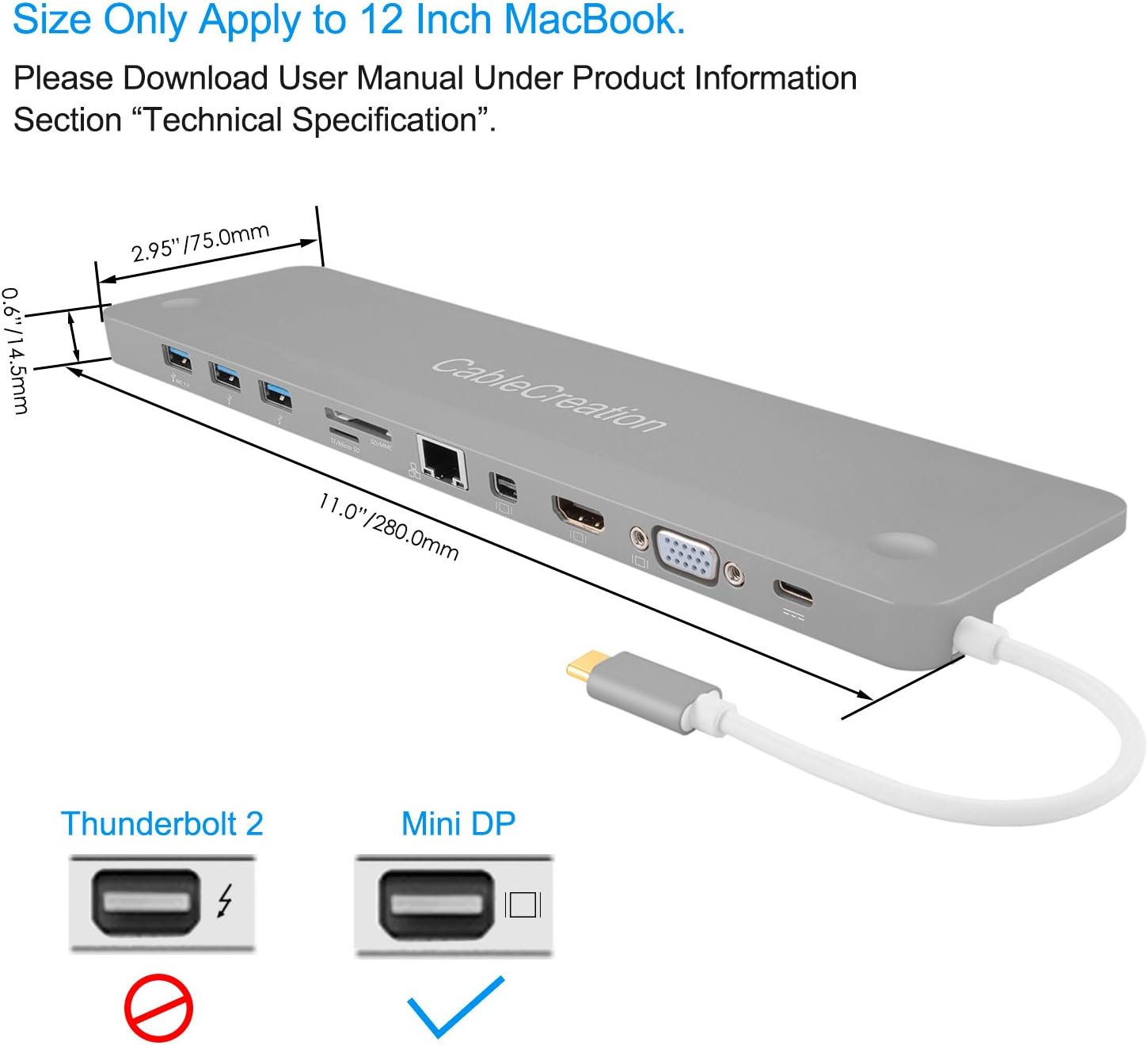

? Multifunctional USB Type C (or Thunderbolt 3) docking, adds HDMI, VGA, USB 3.0, Mini DisplayPort, Ethernet, stereo, SD card, Micro SD card and USB-C female charger, Compatible with Macbook Air 2018,2017 iMac/iMac Pro, 2017 & 2016 MacBook Pro, Retina MacBook 12" 2015 / 2016, Surface Book 2, Chromebook Pixel 2015, XPS 13 & 15, Spectre x360 13" & 15", Yoga 920/910, ThinkPad P50 & P70, (Please note the size ONLY apply to 12-inch MacBook)
-
? Video Output Ports, Support Netflix, YouTube, Amazon Prime, Hulu. ? Note: 1) Requires USB-C port of laptop supporting Thunderbolt 3 or Display Port Alternate Mode; 2) Do Not support daisy chain; 3) Choose corresponding HDMI input source from HDMI monitors and make sure to use HDMI cable 1.4 or newer version to enjoy the max resolution; 4) Please connect the Mini DP port to Mini DP enabled monitor, do not convert it to HDMI or DVI, Mini Display Port is NOT Thunderbolt 2.
-
?NOTE THAT ONLY Windows 10 laptop can fulfill 2 external monitor with extend mode, showing different image independently and simultaneously. MacBook need another adapter to achieve that goal. Support USB 3.0 super speed (5Gbps) transmission, downward compatible USB2.0; Two USB 3.0 (except USB 3.0 BC 1.2) share 5V@1A, which means the current is not strong, but USB 3.0 BC 1.2 port can reach [email protected]. Please connect the device to USB 3.0 BC 1.2 port if you need to charge it.
-
? USB-C female charging port ONLY for MacBook Pro, MacBook or Google new Chromebook Pixel. When you hooked your Apple's 30W, 61W, 87W USB-C power adapter or other supporting Type-C PD charging adapters, the hub would take 15W power when the power pass through. USB-C male port is designed for connecting with host PC, USB-C female port is for connecting PD adapter, both USB-C port do not support connecting with monitor.
-
? Please refer to attachment from below “Technical Specification” for User Manual and Application Guide_Trouble Shootings for LAN RJ45. Procedure of setting Audio: 1) MacOS system: Upper-left Apple icon -->System Preferences -->Sound -->Output -->Choose PnP Audio Device; 2)Windows 10: Lower-right System Tray -->Right-Click Audio icon -->Playback Devices -->Playback -->Choose PnP Audio Device. Please do NOT connect the extension cable to this adapter, it may disable Audio transmission.
Product description
Specification

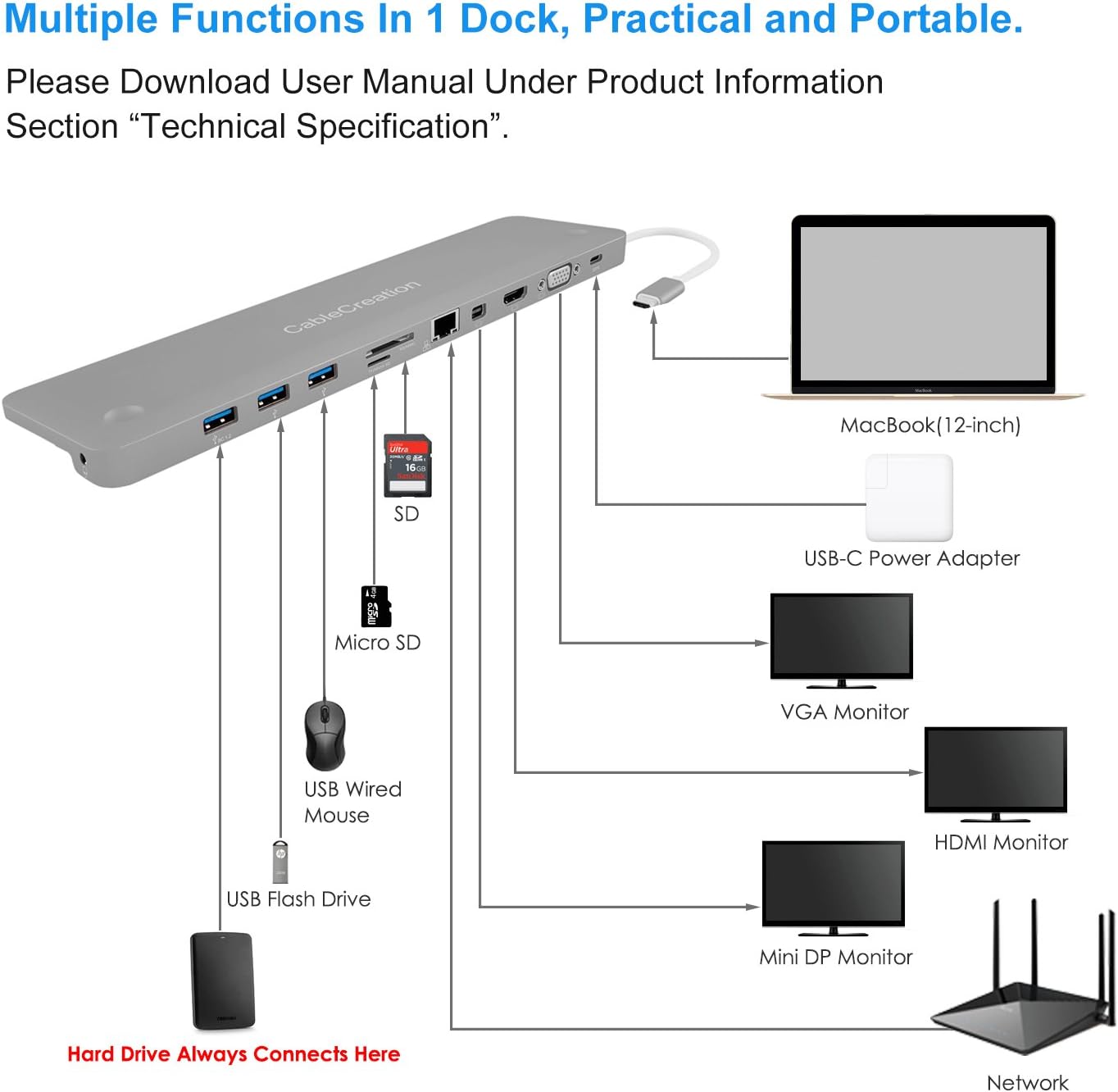

-Side 1(Input): USB 3.1 Type C Male
-Side 2(Output):
*HDMI Female x 1, Resolution up to 4Kx2K@30Hz
*Mini DP Female x 1, Resolution up to 4Kx2K@30Hz
*VGA Female x 1, Resolution up to 1920 x 1200@60Hz
*USB type C Female for charging x 1
*USB 3.0 Female x 3
*RJ45 Gigabit Ethernet Female x 1
*Stereo Female x 1
*SD Card Slot x 1
*Micro SD Card Slot x 1
Color: Space Grey
Cable Length: 15CM
?Important Notes?
-- For using dual monitors
1.Please keep the adapter completely stationary with computer once they are connected. Do not continuously plug in or plug off the cable and adapter.
2.Mini DP and VGA ports working together, please connect Mini DP port with Mini DP monitor first, adjust the Mini DP monitor resolution to 1080P, then connect VGA port with VGA monitor. They cannot work together if Mini DP monitor resolution is 4K.
3.Mini DP and HDMI ports working together, same procedure as Mini DP working together with VGA port.
-- Mirror and Extend Mode
1. For MacOS System: Top left corner Apple icon-->System Preferences-->Displays--> Mirror or Extend Displays. 2 external monitors will mirror each other, but both image can be different with laptop screen.
2. For Windows 10 System: Press Windows key + P combination command-->Choose Duplicate or Extend.
-- For 3 USB 3.0 A Ports, total output 10W(5V@2A), Max 5Gbps data transmission speed
1.We suggest you to connect the Storage Device to BC 1.2 port with max 7.5W([email protected]).
2.The total output of the 3 USB-A is 10W(5V@2A), 1 port supports BC 1.2, the other two ports share max 5W (5V@1A).
-- For SD card, Micro SD card ports, Only read one at once.
