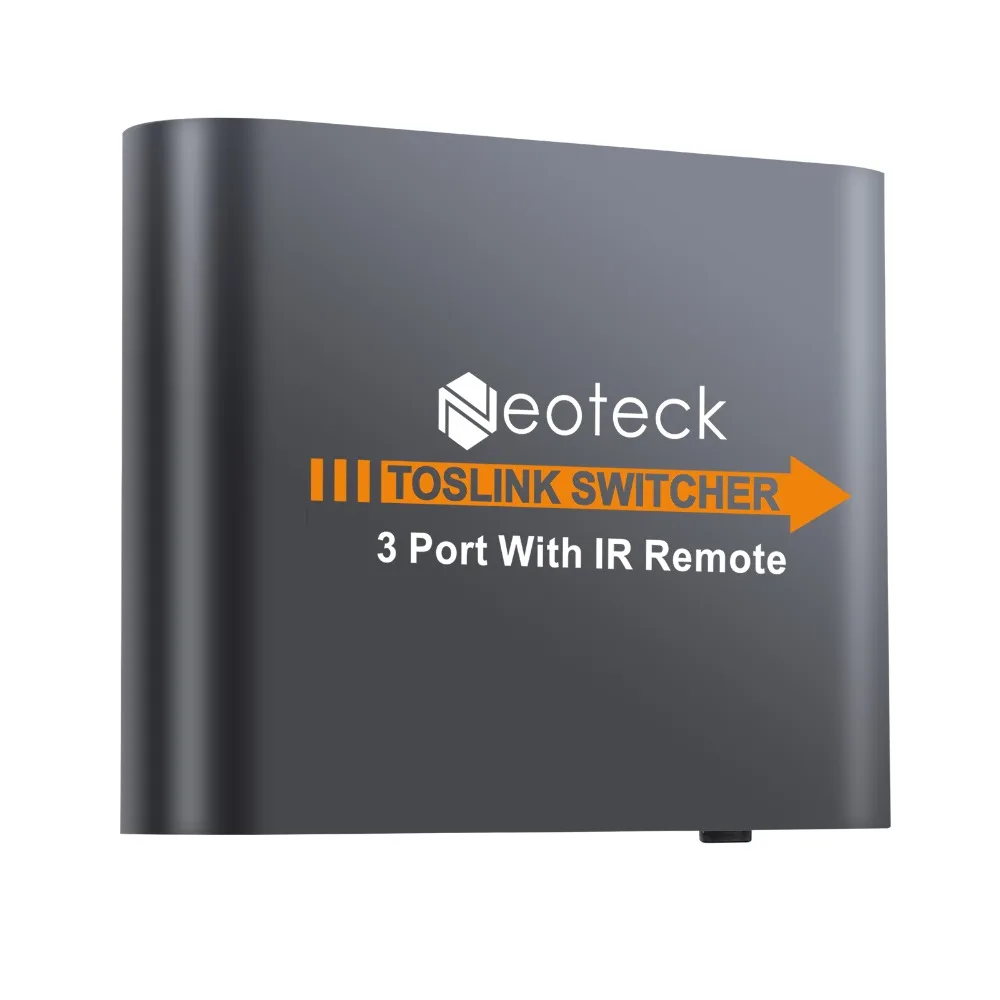

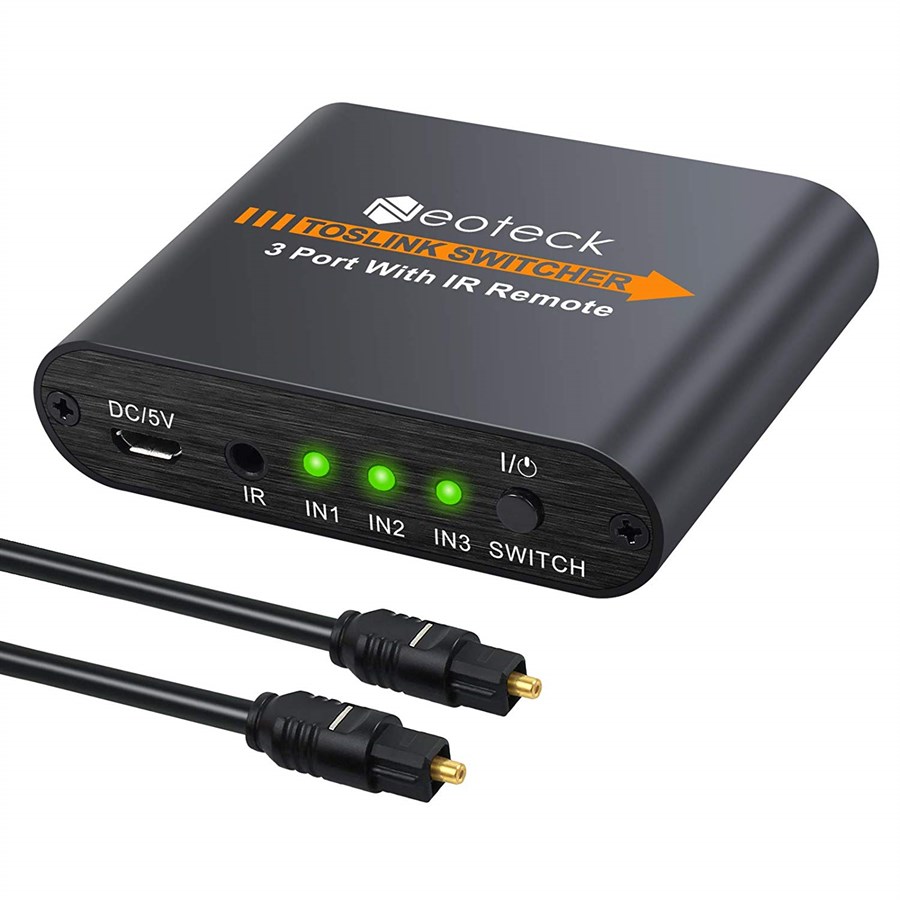

3x1 Toslink Audio Switcher with IR Remote Control Toslink/ Digital/ Optical Audio Input Signals Switch to ONE Toslink Optical Output from Apple TV, PS3, PS4, Blu-ray Player, Cable box, HDTV to one Optical Port on your Headphone, Sound bar, AV Receiver or Amplifier
-
Support 3 Audio Formats The Switcher Supports LPCM2.0, DTS, and Dolby-AC3, Let you Enjoy Various Auditory Feasts
-

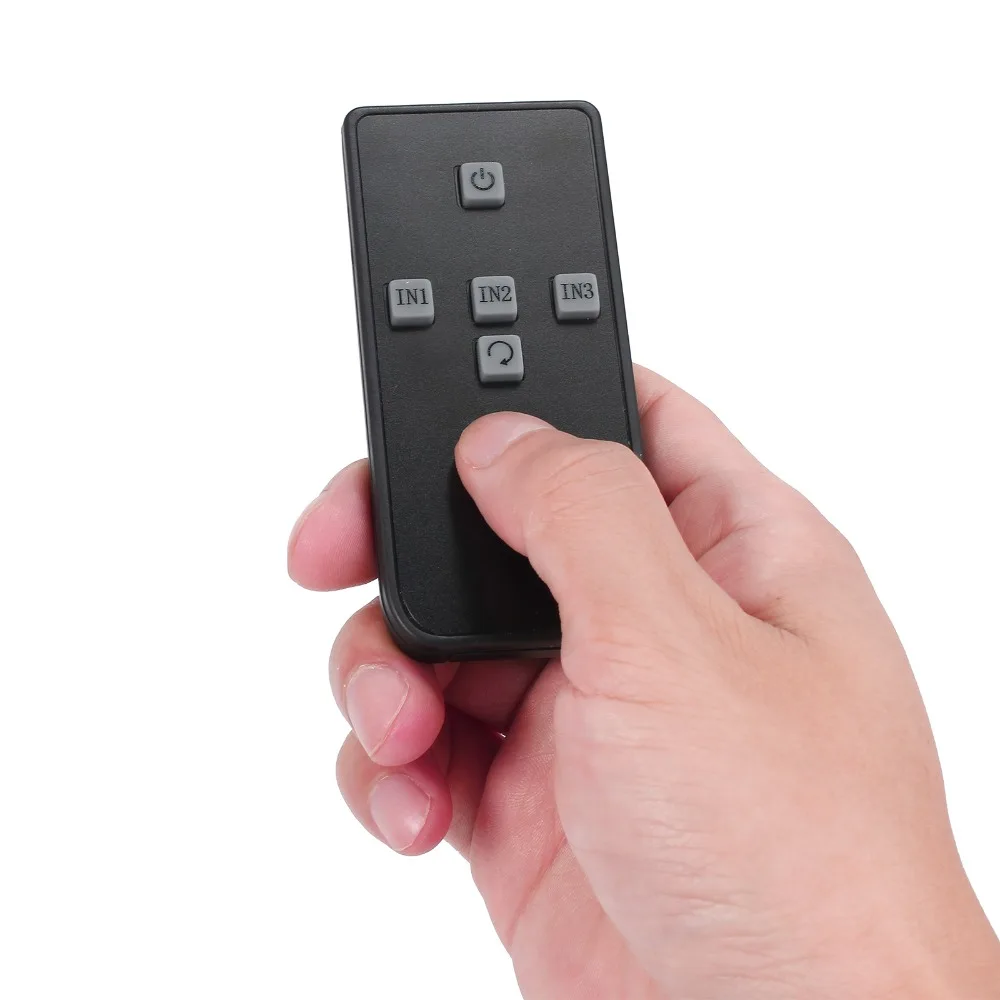

Remote Control and Manual Switching Plug & Play, Input can be Selected via IR Remote or Button on the Switch, Using the Optical Fiber Cable Loss Less Than 0.2Dbm, Output Distance Up to 40m
-
Overload Protection Over-voltage Protection can Prevent the Damage Caused by Inappropriate Power Adapter to the Toslink Audio Switcher
-
Other Features Support Last Time Working State Memory When Power off And Support Signal Retiming; 1m Optical Fiber Cable
Features:
1.Three ways of optical fiber signals switch to one sets of SPDIF/TosLink signal receiving device.
2.Audio format support : LPCM2.0/DTS/Dolby-AC3
3.Support signal retiming
4.Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
5.The input control can through R/M and also can directly press the button
6.Support last time working state memory when power off
7.Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
8.LED status indication
9.No loss of quality
10.Installs in minutes
Specifications:
Support audio format: LPCM2.0/DTS/Dolby-AC3
Peak wavelength: 650nm
Max baud rate: 16Mbps
Output cable distance: ≤40m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current: 100mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1000mA
Operating Temperature range: (0 to +40?)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 70 x 50 x 18 (mm)
Weight: 78g
Package:
1 x Toslink Switcher
1 x Remote Control Unit
1 x USB Power Cable
1 x 1m Toslink cable (Optical cable)
